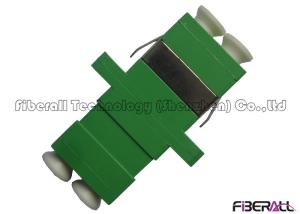

Single Mode LC APC Fiber Optic Cable Coupler With Flat Spring Green Color

Name: Single Mode LC APC Fiber Optic Cable Coupler With Flat Spring Green Color
Brand: Fiberall
Price: 1 USD

Wholesale Single Mode LC APC Fiber Optic Cable Coupler With Flat Spring Green Color from china suppliers

Brand Name : Fiberall

Model Number : FA-AD-LA2SP-S

Certification : RoHS

Place of Origin : China

MOQ : 100pcs

Price : Negotiable

Payment Terms : L/C,T/T,Western Union, MoneyGram,PayPal

Delivery Time : 3-5 days

Packaging Details : Plastic Bag or Blister Box/Carton

Product Name : Optical Adapter

Interface : LC/APC

Housing material : Plastic

Color : Green

Sleeve material : Zirconia

Sleeve diameter : 1.25mm

Repeatability : ≤0.1dB

Temperature Range : -20℃~+70℃

Contact Now

FA-AD-LA2SP-S , Single Mode LC APC Fiber Optic Adapter With Flat Spring And Flange Green Color

LC fiber optic adapter provide most shape options like common simplex, duplex and Quadplex. It can be with flange or without flange, with hollow or without hollow, with metal dome or without metal dome, with screw hole or without screw hole, and special type like with step, with short footprint and so on.

Other than adapter with same interface on both end, Fiberall also provide LC hybrid conversion adapter like LC-SC, LC-ST, LC-FC and so on, available in both plastic and metal, simplex and duplex. We also provide one piece LC fiber optic adapter with enhanced rattle free wings. The one piece design has proven increased side loading performance over conventional adapters and Fiberall’s agglomeration technology ensures the best quality, high intensity and stability.

Characteristics

Compact design

Plastic housing

With/without flange

Various housing color for options

One piece solid body

Compliant with Telcordia, ANSI, TIA/EIA, NTT and JIS

Parameters Of FA-AD-LA2SP-S

Part number	FA-AD-LA2SP-S
Adapter specification	Fiber Adapter LC/APC DX Plastic Green
Suitable fiber type	OS1 or OS2
Port number	Duplex
Housing material	Plastic
Material options	PEI, PPO, PC
Sleeve material	Zirconia
Housing color	Green
Dust cap	Round, White
Working temperature	-20℃~+70℃
Insertion Loss(dB)	SM＜0.2dB ; MM＜0.3dB
Mechanism Durability (500cycles)	≤0.2dB

Product Tags:

fiber optic couplers

optical fiber adapter

Single Mode LC APC Fiber Optic Cable Coupler With Flat Spring Green Color Images
